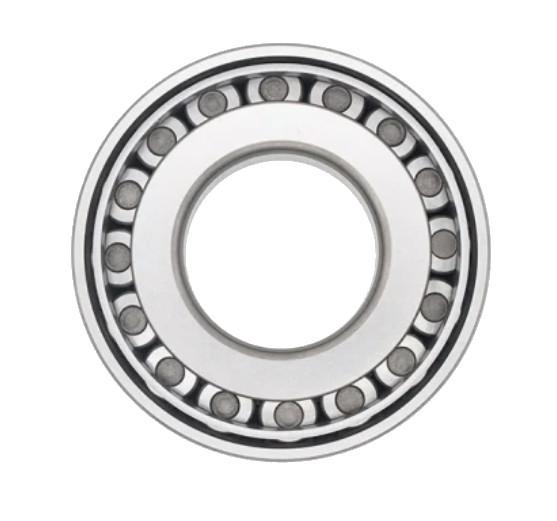

Tapered Roller Bearings 32000 Series ID 25-320 mm

  • 1
  • 2
  • 3

Brand Name : DCM

Model Number : Tapered Roller Bearings 32000 Series

Certification : ISO9001

Place of Origin : China

MOQ : Negotiated

Price : Negotiated

Payment Terms : Negotiated

Supply Ability : Negotiated

Delivery Time : Negotiated

Packaging Details : Industrial Packing or Single Box, Cartoon,Pallet

Material : GCr15

Precision Rating : P0 P6 P5 ABEC-1 ABEC-3 ABEC-5

Vibration : V1 V2

Type : Roller

Structure : Taper

Application : Automotive,Machinery,Cars,Gearboxes

Cage : Steel Cage

Contact Now

Tapered Roller Bearings 32000 Series ID 25-120 mm

Features

Tapered Roller Bearings are designed for using in a wide range of applications, including automotive, tractor, rolling mill, mining, metallurgical, plastic machinery,etc. This is a separable type of bearing. The inner ring (cone), along with the cage and rollers, is one assembly unit; the outer ring (cup) is the other assembly unit. This feature allows the bearings to be fitted separately and adjusted so that the optimum clearance or preload for each application is achieved.

Due to the inclined position of the tapered rollers, the contact lines between the rollers and raceways intersect at a common point on the axis of the bearing. The contact surfaces of the raceways and tapered rollers are modified to limit edge stresses. As a result of this modification and the large number of rollers, this bearing has high load-carrying capacity and is designed to carry axial and radial loads simultaneously. Since a single bearing of this type can only carry axial loads in one direction, the bearings are usually mounted in pairs.

DCM can produce high quality TRB as the customer requests.We are happy to produce further construction methods. Please do not hesitate to contact us for special bearing characters.We can also supply OEM service.

Product Specification

Bearing code Basic dimension Basic load rating Limiting Speeds Weight Caculation factor
d D B C T rmin nmin Cr Cor Grease Oil Wt e Y Yo
mm mm mm mm mm mm mm kN kN r/min r/min kg
32005 25 47 15 11.5 15 0.6 0.6 25.1 33.5 8000 11000 0.126 0.43 1.4 0.77
32006 30 55 17 13 17 1 1 35.7 46.7 6700 9000 0.175 0.43 1.4 0.77
32007 35 62 18 14 18 1 1 41 58.2 6000 8000 0.221 0.45 1.3 0.73
32008 40 68 19 14.5 19 1 1 46.4 69.5 5300 7000 0.268 0.38 1.6 0.87
32009 45 75 20 15.5 20 1 1 56.3 91 4800 6300 0.338 0.39 1.5 0.84
32010 50 80 20 15.5 20 1 1 56.3 91 4500 6000 0.375 0.42 1.4 0.78
32011 55 90 23 17.5 23 1.5 1.5 73.8 118.9 4000 5300 0.552 0.41 1.5 0.81
32012 60 95 23 17.5 23 1.5 1.5 79.2 118 3800 5000 0.589 0.43 1.4 0.77
32013 65 100 23 17.5 23 1.5 1.5 81.2 124 3400 4500 0.626 0.41 1.5 0.81
32014 70 110 25 19 25 1.5 1.5 92.5 154.8 3200 4300 0.853 0.43 1.4 0.76
32015 75 115 25 19 25 1.5 1.5 97 167.5 3000 4000 0.913 0.46 1.3 0.72
32016 80 125 29 22 29 1.5 1.5 127 217.6 2700 3600 1.271 0.42 1.4 0.78
32017 85 130 29 22 29 1.5 1.5 129.8 226.4 2600 3600 1.33 0.44 1.4 0.75
32018 90 140 32 24 32 2 1.5 153 265.5 2400 3200 1.718 0.42 1.4 0.78
32019 95 145 32 24 32 2 1.5 156.5 276.3 2300 3200 1.78 0.44 1.4 0.75
32020 100 150 32 24 32 2 1.5 159.5 286.9 2200 3000 1.882 0.46 1.3 0.72
32021 105 160 35 26 35 2.5 2 176.8 312.1 1900 2800 2.377 0.44 1.4 0.74
32022 110 170 38 29 38 2.5 2 213 379.1 1900 2600 2.985 0.43 1.4 0.77
32024 120 180 38 29 38 2.5 2 216.1 394.7 1700 2400 3.171 0.46 1.3 0.72
32026 130 200 45 34 45 2.5 2 287.2 527.9 1600 2200 4.87 0.43 1.4 0.76
32028 140 210 45 34 45 2.5 2 292.4 549.3 1600 2200 5.14 0.46 1.3 0.72
32030 150 225 48 36 48 3 2.5 343 619 1400 2000 6.47 0.46 1.3 0.72
32032 160 240 51 38 51 3 2.5 376 686 1300 1800 7.69 0.46 1.3 0.72
32034 170 260 57 43 57 3 2.5 520 870 1200 1700 10.6 0.44 1.35 0.74
32036 180 280 64 48 64 3 2.5 640.6 1151.3 1200 1600 14.3 0.42 1.42 0.78
32038 190 290 64 48 64 3 2.5 660 1200 1100 1500 14.9 0.44 1.36 0.75
32040 200 310 70 53 70 3 2.5 748 1370 1000 1400 18.9 0.43 1.39 0.77
32044 220 340 76 57 76 4 3 897 1660 950 1300 74.4 0.43 1.39 0.77
32048 240 360 76 57 76 4 3 935 1800 850 1200 26.2 0.46 1.3 0.72
32052 260 400 87 65 87 5 4 1170 2200 800 1100 38.5 0.43 1.38 0.76
32056 280 420 87 65 87 5 4 1210 2360 710 1000 40.6 0.46 1.31 0.72
32060 300 460 100 74 100 5 4 1540 3000 670 900 56.6 0.43 1.38 0.76
32064 320 480 100 74 100 5 4 1540 3100 630 850 60 0.46 1.31 0.72

Tapered Roller Bearings 32000 Series ID 25-320 mm

Application

  • Logistic Transport Facilities
  • Automation Technology
  • Machine Tools
  • Aerospace Industry
  • Mechanical Engineering
  • Industrial Robots
  • Textile Machinery
  • Automotive Industry
  • Construction Machinery
  • Electric Motors
  • Gearboxes
